BTT SKR Mini V1.2 - ADXL345 - Klipper

Raw

klipper.conf

	[adxl345]
	axes_map: x,-y,z
	cs_pin: PC7
	spi_bus: spi1

Author

vajonam commented May 9, 2022 •

edited

Loading

On an BTT SKR Mini V1.2 I was able to get it working

PC7 is a unused neopixel ping for chip select pin

[adxl345]
axes_map: x,-y,z
cs_pin: PC7
spi_bus: spi1

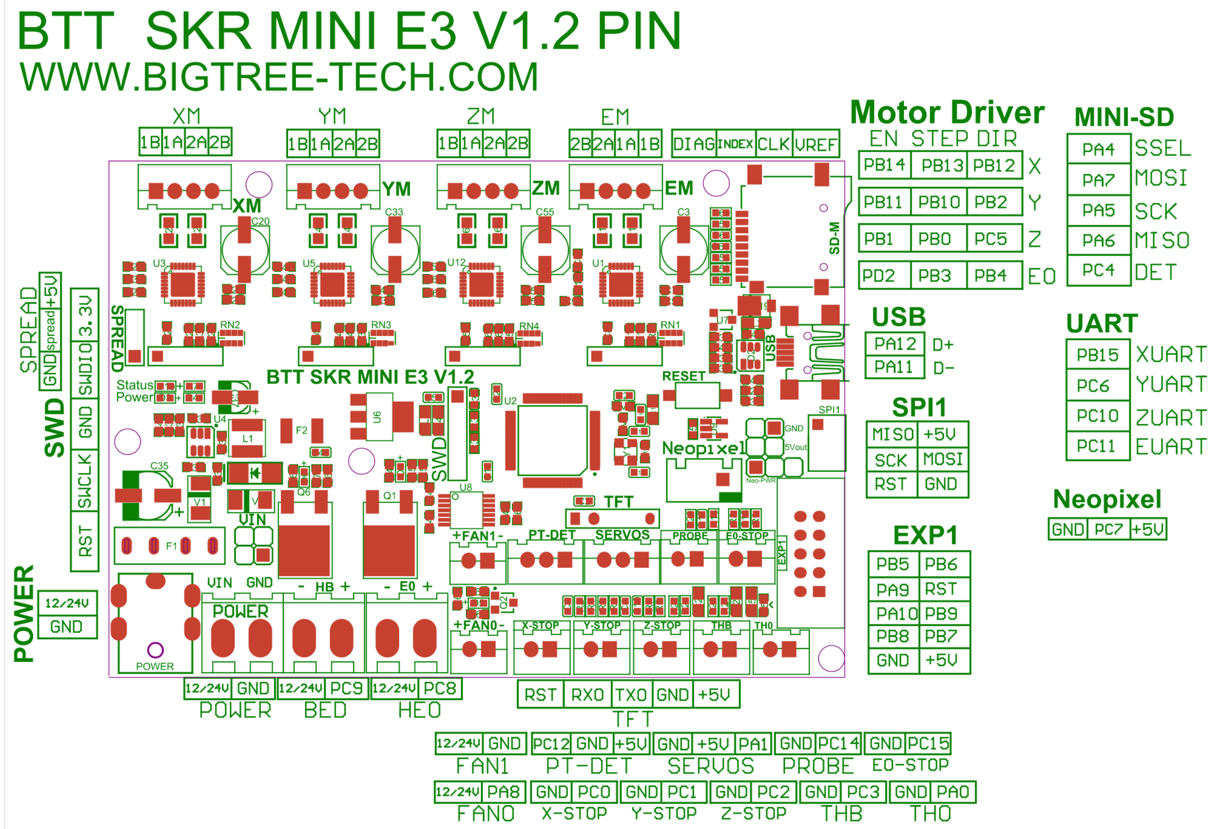

Wiring based on pinout above.

ADXL345	BTT SKR MINI V1.2 MCU
SDO	MISO
SDA	MOSI
SCL	SCK
5V	5V
GND	GND
CS	PC7

However I did notice that that the MCU didn't boot up with the ADXL connected, it seems to work with it disconnected and then once it starts up and get the klipper: ready, you can connect up the ADXL345 and the ACCEL.._QUERY should return correct.
