Commentary on ERC1155 - Multi Token Standard

Source: ethereum.org

  • Implementation on Openzeppelin: Click here
  • Implementation with Video Tutorial: @youtube Click here

Smart contracts implementing the ERC-1155 standard MUST implement all of the functions in the ERC1155 interface.

Smart contracts implementing the ERC-1155 standard MUST implement the ERC-165 supportsInterface function and MUST return the constant value true if 0xd9b67a26 is passed through the interfaceID argument.

interface ERC1155 /* is ERC165 */ {...}

safeTransferFrom(): Transfers `_value` amount of an `_id` from the `_from` address to the `_to` address specified (with safety call).
        ALSO: function safeTransferFrom(address _from, address _to, uint256 _id, uint256 _value, bytes calldata _data) external
        @dev Caller must be approved to manage the tokens being transferred out of the `_from` account (see "Approval" section of the standard).
        MUST revert if `_to` is the zero address.
        MUST revert if balance of holder for token `_id` is lower than the `_value` sent.
        MUST revert on any other error.
        MUST emit the `TransferSingle` event to reflect the balance change (see "Safe Transfer Rules" section of the standard).
        After the above conditions are met, this function MUST check if `_to` is a smart contract (e.g. code size > 0). If so, it MUST call `onERC1155Received` on `_to` and act appropriately (see "Safe Transfer Rules" section of the standard).
        @param _from    Source address
        @param _to      Target address
        @param _id      ID of the token type
        @param _value   Transfer amount
        @param _data    Additional data with no specified format, MUST be sent unaltered in call to `onERC1155Received` on `_to`

safeBatchTransferFrom(): Transfers `_values` amount(s) of `_ids` from the `_from` address to the `_to` address specified (with safety call).
        ALSO: function safeBatchTransferFrom(address _from, address _to, uint256[] calldata _ids, uint256[] calldata _values, bytes calldata _data) external
        @dev Caller must be approved to manage the tokens being transferred out of the `_from` account (see "Approval" section of the standard).
        MUST revert if `_to` is the zero address.
        MUST revert if length of `_ids` is not the same as length of `_values`.
        MUST revert if any of the balance(s) of the holder(s) for token(s) in `_ids` is lower than the respective amount(s) in `_values` sent to the recipient.
        MUST revert on any other error.
        MUST emit `TransferSingle` or `TransferBatch` event(s) such that all the balance changes are reflected (see "Safe Transfer Rules" section of the standard).
        Balance changes and events MUST follow the ordering of the arrays (_ids[0]/_values[0] before _ids[1]/_values[1], etc).
        After the above conditions for the transfer(s) in the batch are met, this function MUST check if `_to` is a smart contract (e.g. code size > 0). If so, it MUST call the relevant `ERC1155TokenReceiver` hook(s) on `_to` and act appropriately (see "Safe Transfer Rules" section of the standard).
        @param _from    Source address
        @param _to      Target address
        @param _ids     IDs of each token type (order and length must match _values array)
        @param _values  Transfer amounts per token type (order and length must match _ids array)
        @param _data    Additional data with no specified format, MUST be sent unaltered in call to the `ERC1155TokenReceiver` hook(s) on `_to`

balanceOf(): Get the balance of an account's tokens.
        ALSO: function balanceOf(address _owner, uint256 _id) external view returns (uint256);
        @param _owner  The address of the token holder
        @param _id     ID of the token
        @return        The _owner's balance of the token type requested

balanceOfBatch(): Get the balance of multiple account/token pairs
        ALSO: function balanceOfBatch(address[] calldata _owners, uint256[] calldata _ids) external view returns (uint256[] memory)
        @param _owners The addresses of the token holders
        @param _ids    ID of the tokens
        @return        The _owner's balance of the token types requested (i.e. balance for each (owner, id) pair)

setApprovalForAll(): Enable or disable approval for a third party ("operator") to manage all of the caller's tokens.
        ALSO: function setApprovalForAll(address _operator, bool _approved) external
        @dev MUST emit the ApprovalForAll event on success.
        @param _operator  Address to add to the set of authorized operators
        @param _approved  True if the operator is approved, false to revoke approval

isApprovedForAll(): Queries the approval status of an operator for a given owner.
        ALSO: function isApprovedForAll(address _owner, address _operator) external view returns (bool)
        @param _owner     The owner of the tokens
        @param _operator  Address of authorized operator
        @return           True if the operator is approved, false if not
  • Events:
TransferSingle: Either `TransferSingle` or `TransferBatch` MUST emit when tokens are transferred, including zero value transfers as well as minting or burning (see "Safe Transfer Rules" section of the standard). ALSO: event TransferSingle(address indexed _operator, address indexed _from, address indexed _to, uint256 _id, uint256 _value)
        The `_operator` argument MUST be the address of an account/contract that is approved to make the transfer (SHOULD be msg.sender).
        The `_from` argument MUST be the address of the holder whose balance is decreased.
        The `_to` argument MUST be the address of the recipient whose balance is increased.
        The `_id` argument MUST be the token type being transferred.
        The `_value` argument MUST be the number of tokens the holder balance is decreased by and match what the recipient balance is increased by.
        When minting/creating tokens, the `_from` argument MUST be set to `0x0` (i.e. zero address).
        When burning/destroying tokens, the `_to` argument MUST be set to `0x0` (i.e. zero address).

TransferBatch: Either `TransferSingle` or `TransferBatch` MUST emit when tokens are transferred, including zero value transfers as well as minting or burning (see "Safe Transfer Rules" section of the standard). ALSO: event TransferBatch(address indexed _operator, address indexed _from, address indexed _to, uint256[] _ids, uint256[] _values)
        The `_operator` argument MUST be the address of an account/contract that is approved to make the transfer (SHOULD be msg.sender).
        The `_from` argument MUST be the address of the holder whose balance is decreased.
        The `_to` argument MUST be the address of the recipient whose balance is increased.
        The `_ids` argument MUST be the list of tokens being transferred.
        The `_values` argument MUST be the list of number of tokens (matching the list and order of tokens specified in _ids) the holder balance is decreased by and match what the recipient balance is increased by.
        When minting/creating tokens, the `_from` argument MUST be set to `0x0` (i.e. zero address).
        When burning/destroying tokens, the `_to` argument MUST be set to `0x0` (i.e. zero address).

ApprovalForAll: MUST emit when approval for a second party/operator address to manage all tokens for an owner address is enabled or disabled (absence of an event assumes disabled). ALSO: event ApprovalForAll(address indexed _owner, address indexed _operator, bool _approved)

URI: URIs are defined in RFC 3986. The URI MUST point to a JSON file that conforms to the "ERC-1155 Metadata URI JSON Schema". ALSO: event URI(string _value, uint256 indexed _id);

ERC-1155 Token Receiver

Smart contracts MUST implement all of the functions in the ERC1155TokenReceiver interface to accept transfers. See “Safe Transfer Rules” for further detail.

Smart contracts MUST implement the ERC-165 supportsInterface function and signify support for the ERC1155TokenReceiver interface to accept transfers. See “ERC1155TokenReceiver ERC-165 rules” for further detail.

// The ERC-165 identifier for this interface is `0x4e2312e0`
interface ERC1155TokenReceiver {...}
**Contents of above contract below:**
onERC1155Received(): Handle the receipt of a single ERC1155 token type.
        ALSO: function onERC1155Received(address _operator, address _from, uint256 _id, uint256 _value, bytes calldata _data) external returns(bytes4)
        @dev An ERC1155-compliant smart contract MUST call this function on the token recipient contract, at the end of a `safeTransferFrom` after the balance has been updated.
        This function MUST return `bytes4(keccak256("onERC1155Received(address,address,uint256,uint256,bytes)"))` (i.e. 0xf23a6e61) if it accepts the transfer.
        This function MUST revert if it rejects the transfer.
        Return of any other value than the prescribed keccak256 generated value MUST result in the transaction being reverted by the caller.
        @param _operator  The address which initiated the transfer (i.e. msg.sender)
        @param _from      The address which previously owned the token
        @param _id        The ID of the token being transferred
        @param _value     The amount of tokens being transferred
        @param _data      Additional data with no specified format
        @return           `bytes4(keccak256("onERC1155Received(address,address,uint256,uint256,bytes)"))`

onERC1155BatchReceived(): Handle the receipt of multiple ERC1155 token types.
        ALSO: function onERC1155BatchReceived(address _operator, address _from, uint256[] calldata _ids, uint256[] calldata _values, bytes calldata _data) external returns(bytes4)
        @dev An ERC1155-compliant smart contract MUST call this function on the token recipient contract, at the end of a `safeBatchTransferFrom` after the balances have been updated.
        This function MUST return `bytes4(keccak256("onERC1155BatchReceived(address,address,uint256[],uint256[],bytes)"))` (i.e. 0xbc197c81) if it accepts the transfer(s).
        This function MUST revert if it rejects the transfer(s).
        Return of any other value than the prescribed keccak256 generated value MUST result in the transaction being reverted by the caller.

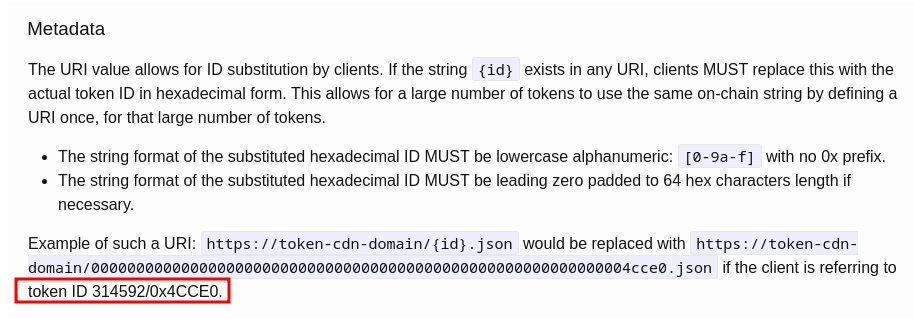

small exerpt from metadata section

So we can see that 64 leading zeroes are padded to the left to the hexadecimal form of the id.


Sample Code Made via following video implementation tut:

  • Implementation with Video Tutorial: @youtube Click here
// SPDX-License-Identifier: MIT
pragma solidity ^0.8.9;

import "@openzeppelin/contracts@4.8.0/token/ERC1155/ERC1155.sol";
import "@openzeppelin/contracts@4.8.0/access/Ownable.sol";

contract MyToken is ERC1155, Ownable {
    constructor() ERC1155("") {}

    function setURI(string memory newuri) public onlyOwner {
        _setURI(newuri);
    }

    function mint(address account, uint256 id, uint256 amount, bytes memory data)
        public
        onlyOwner
        payable
    {
        _mint(account, id, amount, data);
    }

    function mintBatch(address to, uint256[] memory ids, uint256[] memory amounts, bytes memory data)
        public
        onlyOwner
    {
        _mintBatch(to, ids, amounts, data);
    }
}
