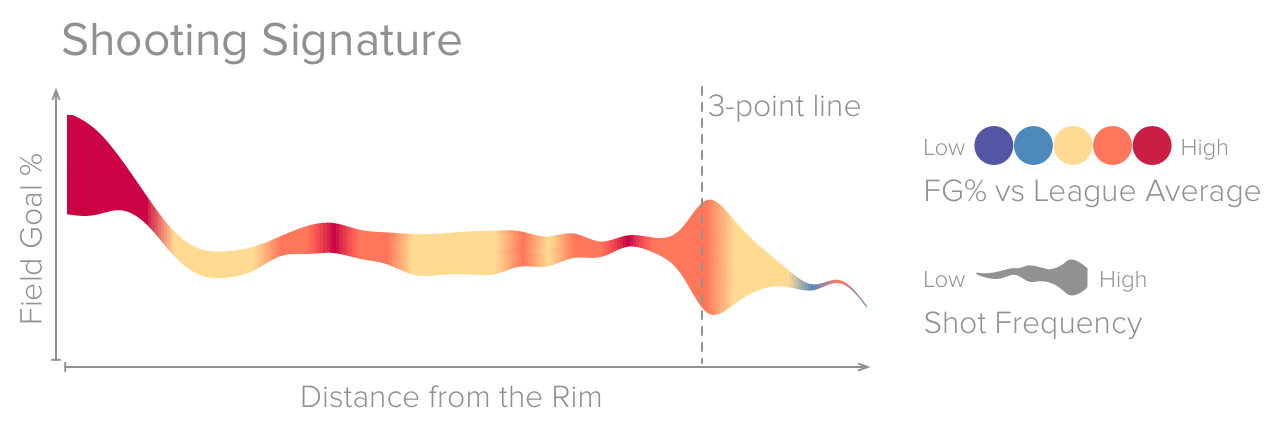

Shooting Signatures were designed to give an at-a-glance view of an NBA player's shooting performance. They were developed by Peter Beshai (@pbesh) as part of Buckets, an interactive NBA shot visualization tool.
Last active
October 25, 2019 16:40
-
-
Save pbeshai/ffd0f9d84b4e8df27db2 to your computer and use it in GitHub Desktop.
Shooting Signatures
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| <!DOCTYPE html> | |
| <html> | |
| <head> | |
| <title>Shooting Signature Example</title> | |
| </head> | |
| <body> | |
| <div id="signature"></div> | |
| <script src="https://cdnjs.cloudflare.com/ajax/libs/d3/3.5.3/d3.min.js"></script> | |
| <script> | |
| // get your data | |
| var data = [{"x":0,"y":0.7984084880636605,"widthValue":158,"colorValue":0.1629224750896936},{"x":1,"y":0.765993265993266,"widthValue":145,"colorValue":0.16595424641159695},{"x":2,"y":0.7241379310344827,"widthValue":74,"colorValue":0.14788844079931118},{"x":3,"y":0.6082191780821917,"widthValue":36,"colorValue":0.09604064011114222},{"x":4,"y":0.45348837209302323,"widthValue":35,"colorValue":0.0205093443427537},{"x":5,"y":0.37333333333333335,"widthValue":39,"colorValue":-0.015647382920110142},{"x":6,"y":0.3744075829383886,"widthValue":39,"colorValue":-0.012850902701298128},{"x":7,"y":0.3926940639269407,"widthValue":37,"colorValue":0.0016039868744902042},{"x":8,"y":0.4619047619047619,"widthValue":22,"colorValue":0.07160931036145685},{"x":9,"y":0.4788135593220339,"widthValue":45,"colorValue":0.0874320387619314},{"x":10,"y":0.4979423868312757,"widthValue":45,"colorValue":0.10551911317398666},{"x":11,"y":0.4542253521126761,"widthValue":42,"colorValue":0.06070052516549129},{"x":12,"y":0.4503311258278146,"widthValue":44,"colorValue":0.05378653654579513},{"x":13,"y":0.4110787172011662,"widthValue":66,"colorValue":0.009121101429431566},{"x":14,"y":0.4196185286103542,"widthValue":61,"colorValue":0.01780232246319491},{"x":15,"y":0.42819148936170215,"widthValue":64,"colorValue":0.02163884827966278},{"x":16,"y":0.41988950276243087,"widthValue":71,"colorValue":0.016918338868285643},{"x":17,"y":0.45425867507886436,"widthValue":50,"colorValue":0.04975728463782164},{"x":18,"y":0.4141791044776119,"widthValue":45,"colorValue":0.015415540872963762},{"x":19,"y":0.4752475247524752,"widthValue":37,"colorValue":0.07919199741203164},{"x":20,"y":0.41830065359477125,"widthValue":20,"colorValue":0.030376008752275918},{"x":21,"y":0.4928571428571429,"widthValue":13,"colorValue":0.10821499731174294},{"x":22,"y":0.45592705167173253,"widthValue":18,"colorValue":0.07432771905345104},{"x":23,"y":0.43107221006564544,"widthValue":39,"colorValue":0.05587993676927633},{"x":24,"y":0.4125364431486881,"widthValue":221,"colorValue":0.041212020305431696},{"x":25,"y":0.3859060402684564,"widthValue":127,"colorValue":0.023158322960854794},{"x":26,"y":0.36511156186612576,"widthValue":60,"colorValue":0.00876771640727797},{"x":27,"y":0.32627118644067793,"widthValue":22,"colorValue":-0.017285514590249906},{"x":28,"y":0.25555555555555554,"widthValue":3,"colorValue":-0.07036667774454414},{"x":29,"y":0.34375,"widthValue":2,"colorValue":0.043655332912590716},{"x":30,"y":0.2,"widthValue":0,"colorValue":-0.06235399820305482}]; | |
| // initialize SVG | |
| var width = 600, height = 200; | |
| var svg = d3.select("#signature").append("svg") | |
| .attr("width", width) | |
| .attr("height", height); | |
| // x = distance in shooting signatures | |
| var x = d3.scale.linear() | |
| .domain([0, 30]) | |
| .range([0, width]); | |
| // for gradient offset (needs % - so map x domain to 0-100%) | |
| var offset = d3.scale.linear() | |
| .domain(x.domain()) | |
| .range([0, 100]); | |
| // y = Field Goal % in shooting signatures | |
| var y = d3.scale.linear() | |
| .domain([0, 1]) | |
| .range([height, 0]); | |
| // scale for the width of the signature | |
| var minWidth = 1; | |
| var maxWidth = height / 4; | |
| var w = d3.scale.linear() | |
| .domain([0, 250]) | |
| .range([minWidth, maxWidth]); | |
| // NOTE: if you want maxWidth to truly be the maximum width of the signature, | |
| // you'll need to add .clamp(true) to w. | |
| // need two area plots to make the signature extend in width in both directions around the line | |
| var areaAbove = d3.svg.area() | |
| .x(function(d) { return x(d.x); }) | |
| .y0(function (d) { return y(d.y) - w(d.widthValue); }) | |
| .y1(function(d) { return Math.ceil(y(d.y)); }) // ceil and floor prevent line between areas | |
| .interpolate("basis"); | |
| var areaBelow = d3.svg.area() | |
| .x(function(d) { return x(d.x); }) | |
| .y0(function (d) { return y(d.y) + w(d.widthValue); }) | |
| .y1(function(d) { return Math.floor(y(d.y)); }) // ceil and floor prevent line between areas | |
| .interpolate("basis"); | |
| // add the areas to the svg | |
| var gArea = svg.append("g").attr("class", "area-group"); | |
| gArea.append("path") | |
| .datum(data) | |
| .attr("class", "area area-above") | |
| .attr("d", areaAbove) | |
| .style("fill", "url(#area-gradient)"); // specify the linear gradient #area-gradient as the colouring | |
| // NOTE: the colouring won't work if you have multiple signatures on the same page. | |
| // In this case, you'll need to generate unique IDs for each gradient. | |
| gArea.append("path") | |
| .datum(data) | |
| .attr("class", "area area-below") | |
| .attr("d", areaBelow) | |
| .style("fill", "url(#area-gradient)"); | |
| /* | |
| // you can draw the line the signature is based around using the following code: | |
| var line = d3.svg.line() | |
| .x(function(d) { return x(d.x); }) | |
| .y(function(d) { return y(d.y); }) | |
| .interpolate("basis"); | |
| gArea.append("path") | |
| .datum(data) | |
| .attr("d", line) | |
| .style("stroke", "#fff") | |
| .style("fill", "none") | |
| */ | |
| // set-up colours | |
| var colorSchemes = { | |
| buckets: { | |
| domain: [-0.15, 0.15], | |
| range: ["#405A7C", "#7092C0", "#BDD9FF", "#FFA39E", "#F02C21", "#B80E05"] | |
| }, | |
| goldsberry: { | |
| domain: [-0.15, 0.15], | |
| range: ["#5357A1", "#6389BA", "#F9DC96", "#F0825F", "#AE2A47"] | |
| } | |
| }; | |
| var activeColorScheme = colorSchemes.goldsberry; | |
| // Note that the quantize scale does not interpolate between colours | |
| var colorScale = d3.scale.quantize() | |
| .domain(activeColorScheme.domain) | |
| .range(activeColorScheme.range); | |
| // generate colour data | |
| var colorData = []; | |
| var stripe = false; // set stripe to true to prevent linear gradient fading | |
| for (var i = 0; i < data.length; i++) { | |
| var prevData = data[i - 1]; | |
| var currData = data[i]; | |
| if (stripe && prevData) { | |
| colorData.push({ | |
| offset: offset(currData.x) + "%", | |
| stopColor: colorScale(prevData.colorValue) | |
| }); | |
| } | |
| colorData.push({ | |
| offset: offset(currData.x) + "%", | |
| stopColor: colorScale(currData.colorValue) | |
| }); | |
| } | |
| // generate the linear gradient used by the signature | |
| gArea.append("linearGradient") | |
| .attr("id", "area-gradient") | |
| .attr("gradientUnits", "userSpaceOnUse") | |
| .attr("y1", 0) | |
| .attr("y2", 0) | |
| .selectAll("stop") | |
| .data(colorData) | |
| .enter().append("stop") | |
| .attr("offset", function(d) { return d.offset }) | |
| .attr("stop-color", function (d) { return d.stopColor; }); | |
| </script> | |
| </body> | |
| </html> |
