Strings in C

Basics

the C programming language has a set of functions implementing operations on strings (character/byte strings) in its standard library
- e.g. length, copying, concatenation, tokenization, searching
for character strings, the standard library uses the convention that strings are null-terminated:
- a string of $n$ characters is represented as an array of $n + 1$ elements
- the last of which is a "NULL character" with numeric value 0

Hardware

the smallest addressable memory unit in most hardware nowadays is a byte $=8$ bits
- each bit can store $2$ states: $1$/$0$
- $n$ bits can store $2^n$ possible combinations
32-bit, 64-bit, ... refer to CPU architectures (and corresponding operating systems)
- Registers INSIDE CPUs are used to hold immediate data:
  - instructions
  - memory addresses
  - data for calculations
- A $n$-bit CPU has $n$-bit wide registers (e.g. $64$-bit CPU has $8$ Byte wide registers)
  - This length is often called the natural unit of data a CPU processes at a time: a word / size_t
    - Linux: unsigned long
    - Windows: SIZE_T
- Since memory access instructions (e.g. Assembly mov/load/store) of the CPU ISA (Instruction Set Architecture) are hard-coded to use a register as memory address
  - a $32$ bit CPU can address a theoretic maximum of $2^{32}$ byte $\approx 4$ gigabytes
  - a $64$ bit CPU can address a theoretic maximum of $2^{64}$ byte $\approx 18$ exabytes ($= 18000$ terrabytes)

Hardware Implementation C Strings

on a hardware level all characters are stored as consecutive fixed width unsigned binary integers that each represent a code unit
- terminated by an additional zero code unit
when speaking of strings normally code units of type char/wchar_t are meant
- a char is $8$ bits $=1$ byte (on most modern machines)
- a wchar_t is $16/32$ bits $=$ $2/4$ byte

#include <stdio.h> // printf

void print_array(const char* name, const char* chars) {
    printf("%s [code units]: ", name);
    const char *separator = "";
    size_t counter = 0;
    while (*chars) {
        printf("%s%d", separator, *chars);
        separator = ",";
        chars++;
    }
    printf("%s%d", separator, *chars);
    printf("\n");
}

int main() {
    // 1. Stack Allocation (automatic memory management)

    // > Pointer to string literal (read-only! | they are always immutable!)
    char* literalPtr = "Literal String";  // Automatically inserts a NULL at the end
    //literalPtr[0] = 'l';                // NOT POSSIBLE! IMMUTABLE!

    // To indicate that you always write 'const'
    const char* CONST_LITERAL_PTR = "Immutable Literal String";

    // > Static string (can be updated | mutable)
    char staticStr[] = "Static String";
    staticStr[0] = 's';

    printf("Literal Pointer:         %s\n", literalPtr);
    printf("Literal Pointer [CONST]: %s\n", CONST_LITERAL_PTR);
    printf("Static String:           %s\n", staticStr);
    print_array("literalPtr", literalPtr);
    print_array("staticStr ", staticStr);
}
// Literal Pointer:         Literal String
// Literal Pointer [CONST]: Immutable Literal String
// Static String:           static String
// literalPtr [code units]: 76,105,116,101,114,97,108,32,83,116,114,105,110,103,0
// staticStr  [code units]: 115,116,97,116,105,99,32,83,116,114,105,110,103,0

Character encoding

To consistently map (encode) binary numbers represent by bits also known as code points to characters/symbols there are multiple standards:

ASCII (American Standard Code for Information Interchange)

In 1963 the ASCII character encoding defined $2^7=128$ symbols consisting of $33$ unprintable symbols and $95$ printable characters.

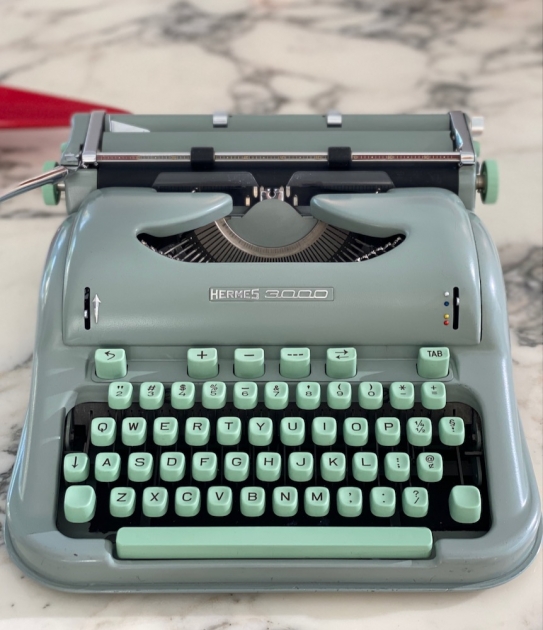

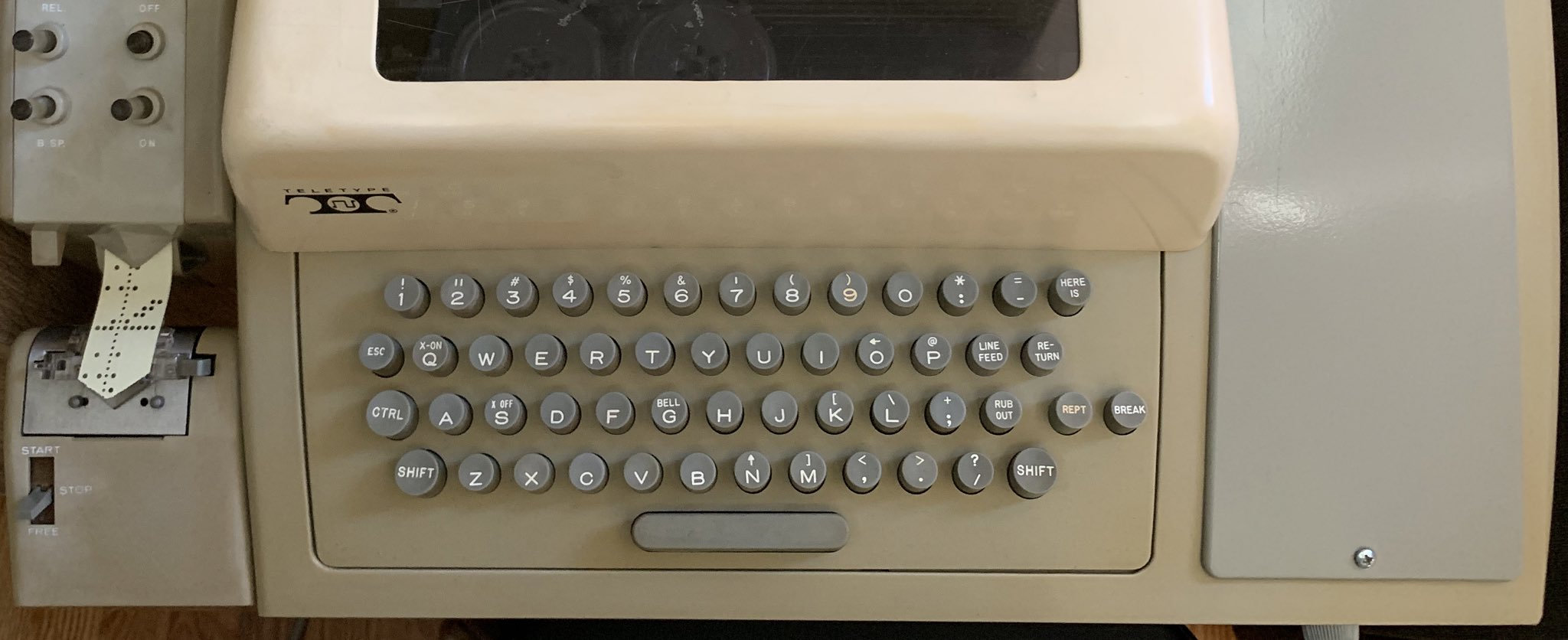

Inspired by type/telewriter layout
- A-Z, a-z, 0-9, punctuation marks
- the ordering of characters, such as the uppercase letters preceding lowercase ones
- control characters like
  - Carriage Return (CR) and Line Feed (LF) $\Rightarrow$ Creates new line by moving the printer back to first column and to the next line

They are represented by numbers from $[0,127]$:

 0 NUL    16 DLE    32      48 0    64 @    80 P    96 `   112 p
 1 SOH    17 DC1    33 !    49 1    65 A    81 Q    97 a   113 q
 2 STX    18 DC2    34 "    50 2    66 B    82 R    98 b   114 r
 3 ETX    19 DC3    35 #    51 3    67 C    83 S    99 c   115 s
 4 EOT    20 DC4    36 $    52 4    68 D    84 T   100 d   116 t
 5 ENQ    21 NAK    37 %    53 5    69 E    85 U   101 e   117 u
 6 ACK    22 SYN    38 &    54 6    70 F    86 V   102 f   118 v
 7 BEL    23 ETB    39 '    55 7    71 G    87 W   103 g   119 w
 8 BS     24 CAN    40 (    56 8    72 H    88 X   104 h   120 x
 9 HT     25 EM     41 )    57 9    73 I    89 Y   105 i   121 y
10 LF     26 SUB    42 *    58 :    74 J    90 Z   106 j   122 z
11 VT     27 ESC    43 +    59 ;    75 K    91 [   107 k   123 {
12 FF     28 FS     44 ,    60 <    76 L    92 \   108 l   124 |
13 CR     29 GS     45 -    61 =    77 M    93 ]   109 m   125 }
14 SO     30 RS     46 .    62 >    78 N    94 ^   110 n   126 ~
15 SI     31 US     47 /    63 ?    79 O    95 _   111 o   127 DEL

The reason the symbols are encoded as $7$-bit values was intentional because early computers handled data in bytes which are blocks of 8 bits. The extra, eighth bit was originally reserved for error checking.

ASCII Extensions

This was enough for basic English use but was extended by various countries internationally to $8$-bit values ($2^8=256$ meaning $128$ custom symbols) to support their symbols/punctuation/...

e.g. ISO/IEC 8859 which contains ä, ü, ö, ß, €, Ä, ...

Unicode

To solve the problem of multiple character encoding standards (that are different depending on the current locale) Unicode is one table that contains all of them instead of having to switch the encoding depending on the current use case.

Designed in 1988 by Joe Becker at Xerox this standard (where the first $256$ code points mirror the ISO/IEC 8859-1 standard) extends the code points to $16$ bits ($2^{16}=65536$) which should allow to universally encode all modern/future text with one standard: https://symbl.cc/en/unicode-table/.

This was later extended to $32$ bits for supplementary characters in Unicode 3.0 (1999) and nowadays contains even a lot of emotes.

UTF (Unicode Transformation Format)

If you would store each character as $32$ bits this would waste for most characters in English/Latin $2/3$ of $4$ empty bytes.

To support all current Unicode code points but still keep the storage size small a transfer function is used that widens the amount of bytes depending on how big the code point of a single symbol is (variable length characters):

UTF-8 uses $1$ to $4$ byte per code point (indicated by a bit mask)

Maximal compatibility with ASCII since the first $128$ symbol have the same code points

First code point	Last code point	Byte 1	Byte 2	Byte 3	Byte 4
U+0000 (0)	U+007F (127)	`0yyyzzzz`
U+0080 (128)	U+07FF (2047)	`110xxxyy`	`10yyzzzz`
U+0800 (2048)	U+FFFF (65535)	`1110wwww`	`10xxxxyy`	`10yyzzzz`
U+010000 (65536)	U+10FFFF (1114111)	`11110uvv`	`10vvwwww`	`10xxxxyy`	`10yyzzzz`

If the first bit in a byte is $0$ it's a $1$ byte wide wide symbol
If the first bits in a byte are $110$ it's a $2$ byte wide wide symbol
...

e.g. ä has the Unicode code point U+00E4 (228, 1110 0100):

// UTF-8 encoding pattern for 2-byte characters:
   110x xxxx   10xx xxxx
// Filling in the bits of 00E4:
// -> 0000 0000 1110 0100
//
//    0 0011     10 0100
// 110         10
   1100 0011   1010 0100

UTF-16 uses $2$ or $4$ byte per code point (indicated by a high surrogate)
- Used by the Windows API and by many programming environments such as Java and Qt
- If the first 2 bytes are between U+D800 ($55296$) and U+DFFF ($57343$) this indicates a surrogate pair meaning this code point is combined by this and the next $2$ bytes
UTF-32 uses a fixed width $4$ byte code point
- No transfer necessary since every Unicode character fits into $32$ bit

Important

Using a variable length encoding like UTF-8 breaks existing code for string length and other operations when counting the actual code points!

The bigger size or e.g. resolving the actual encoded symbols with multiple bytes needs to be explicitly counted!

#include <stdio.h>  // printf
#include <string.h> // strlen

const char* ASCII_CONSTANT = "Hello!"; // Only ASCII symbols
const char* UTF8_CONSTANT = "ÄÖÜ€";    // UTF-8 symbols (file is UTF-8 encoded)

size_t utf8_strlen(const char *s) {
    size_t count = 0;
    while (*s) {                   // As long as the byte/char is not NULL
        if ((*s & 0xC0) != 0x80) { // Start of code point if the byte bitmask
            count++;               // isn't 10xxxxxx ['abcd & 1000'='a000']
        }                          // -> '0xC0'(hex)='11000000'(binary)
                                   // -> '0x80'(hex)='10000000'(binary)
                                   // -> the first 2 bits of *s must be !='10'
        s++;                       // Point to the next consecutive byte/char
    }                              // memory location
    return count;
}

int main() {
    printf("ASCII_CONSTANT: %s (length = %d, utf-8 length = %d)\n",
           ASCII_CONSTANT, strlen(ASCII_CONSTANT), utf8_strlen(ASCII_CONSTANT));
    printf("UTF8_CONSTANT: %s  (length = %d, utf-8 length = %d)\n",
           UTF8_CONSTANT, strlen(UTF8_CONSTANT), utf8_strlen(UTF8_CONSTANT));
}
// ASCII_CONSTANT: Hello! (length = 6, utf-8 length = 6)
// UTF8_CONSTANT:  ÄÖÜ€   (length = 9, utf-8 length = 4)

Arrays

#include <stdio.h>  // printf

void print_array(const char* name, const int integers[], int elements) {
    printf("%s (%d): ", name, elements);
    const char *separator = "";
    for(int j=0; j<elements; j++) {
      printf("%s%d", separator, integers[j]);
      separator = ",";
    }
    printf("\n");
 }

int main() {
    // Static array (fixed size)
    int staticArr[5] = {10, 20, 30, 40, 50}; // specify size + values
    staticArr[0] = 1;                        // change values
    int staticArrAuto[] = {10, 20, 30, 40};  // values determine size
    int staticArrZeros[5] = {1, 2};          // remaining values are 0

    print_array("staticArr", staticArr, 5);
    printf("0: %d, 2: %d\n", staticArr[0], staticArr[2]);
    print_array("staticArrAuto", staticArrAuto, 4);
    print_array("staticArrZeros", staticArrZeros, 5);

    // Pointer Arithmetic
    int *staticArrPtr = staticArr;    // use pointer to access/change values
    printf("[staticArrPtr] 0: %d, 2: %d\n", *staticArrPtr, *(staticArrPtr + 2));
    // This works because the compiler is automatically changing the memory
    // address by 2 * sizeOf(int)
    printf("staticArrPtr                 = %p [pointer]\n",
           (void *)staticArrPtr);
    printf("staticArrPtr + 1             = %p [pointer]\n",
           (void *)(staticArrPtr + 1));
    printf("staticArrPtr + 1             = %p [size_t]\n",
           (size_t)staticArrPtr + 1);
    printf("staticArrPtr + 1*sizeof(int) = %p [size_t]\n",
           (size_t)staticArrPtr + 1 * sizeof(int));
    // THATS WHY IT'S VERY IMPORTANT TO HAVE THE CORRECT POINTER DATA TYPE!
    long *staticArrPtrL = (long *)staticArr;
    printf("(long *) staticArrPtr + 1    = %p [long pointer]\n",
           (void *)(staticArrPtrL + 1));
}
// staticArr (5): 1,20,30,40,50
// 0: 1, 2: 30
// staticArrAuto (4): 10,20,30,40
// staticArrZeros (5): 1,2,0,0,0
// [staticArrPtr] 0: 1, 2: 30
// staticArrPtr                 = 0x7ffe7ecd3fe0 [pointer]
// staticArrPtr + 1             = 0x7ffe7ecd3fe4 [pointer]
// staticArrPtr + 1             = 0x7ffe7ecd3fe1 [size_t]
// staticArrPtr + 1*sizeof(int) = 0x7ffe7ecd3fe4 [size_t]
// (long *) staticArrPtr + 1    = 0x7ffe7ecd3fe8 [long pointer]

#include <stdio.h>        // printf
#include <stdlib.h>       // malloc
#include <sys/resource.h> // stack size limit

int main() {
    // Stack allocation have limits
    struct rlimit rl;
    if (getrlimit(RLIMIT_STACK, &rl) == 0) {
        printf("Stack size limit: %ld bytes (%.2f MB)\n",
               rl.rlim_cur, rl.rlim_cur / (1024.0 * 1024));
    } else {
       fprintf(stderr, "Error: Unable to get stack size limit.\n");
       return 1;
    }
    // E.g. with a 8MB limit for the stack allocating more triggers a stack overflow
    int bigArray[10 * 1024 * 1024]; // 40 MB -> Triggers a Segmentation fault on Linux

    // Dynamic array (Heap allocated)
    // Either big or dynamic sized arrays can be allocated in a region of RAM
    size_t elements = 500;
    size_t size = elements * sizeof(int);
    printf("Allocate memory for %d elements of %d byte size => %zu bytes\n",
           elements, sizeof(int), size);
    int *arr = malloc(size);
    if (arr == NULL) {
       fprintf(stderr, "Error: Memory allocation of %zu bytes failed.\n", size);
       return 1;
    }
    // ... access/change is the same
    free(arr); // THE ALLOCATED RAM REGION MUST BE MANUALLY FREED
    // THIS CAN ONLY BE DONE ONCE AND arr IS NOT ALLOWED TO BE ACCESSED AGAIN!
}
// Stack size limit: 8388608 bytes (8.00 MB)
// Allocate memory for 500 elements of 4 byte size => 2000 bytes
